The evolution of the roof, in its installation too
For centuries, the roof has been the shield of the home. Today, as well as protecting, it must insulate, ventilate and optimise energy consumption.
The new requirements of the Spanish Technical Building Code and energy-efficiency targets call for building systems that improve the thermal performance of the building envelope.
The BorjaSystem installation system lays the foundations for meeting these requirements.
Mortar installation
Most problems in pitched roofs are not in the tile, but in how it is installed.
Using mortar creates stresses, blocks ventilation and compromises the durability of the system.
- Damp and leaks
- Internal condensation
- Structural overload
- Cracks and breakage
- Lack of ventilation
BorjaSYSTEM installation

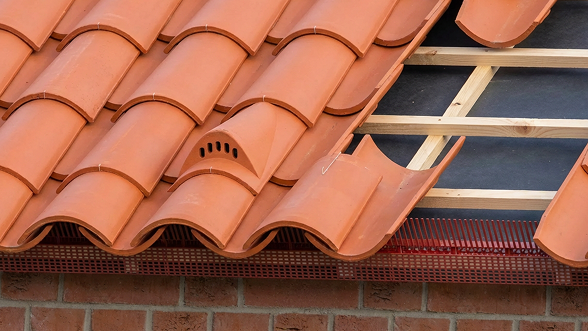

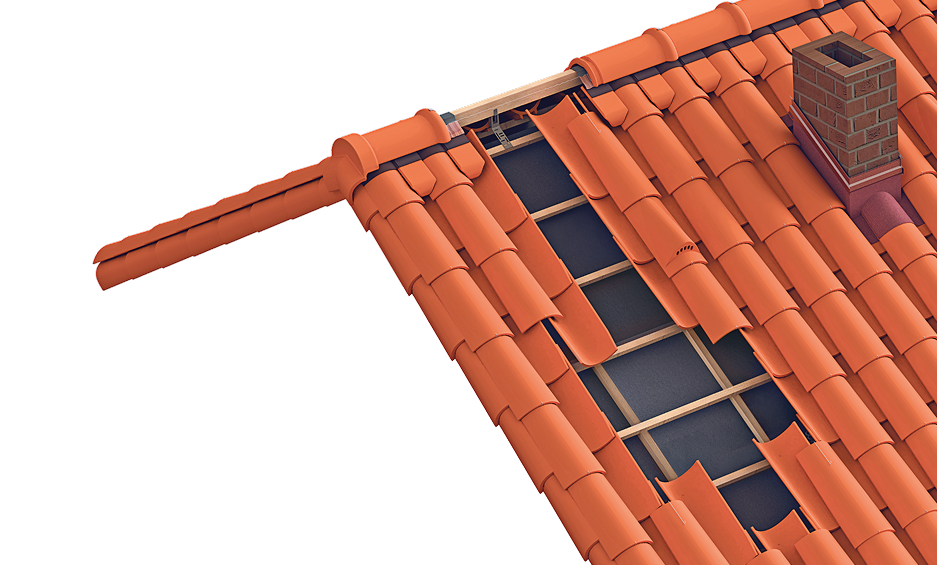

The BORJASYSTEM installation system sets out the criteria for completely dry-laying the roof, with no mortar used anywhere.
- Continuous ventilation
- Improved thermal insulation
- Reduced condensation
- Greater durability
- Lighter installation
When it comes to roofing, correct installation is as important as the finishing material.
Advantages of the BORJASYSTEM system

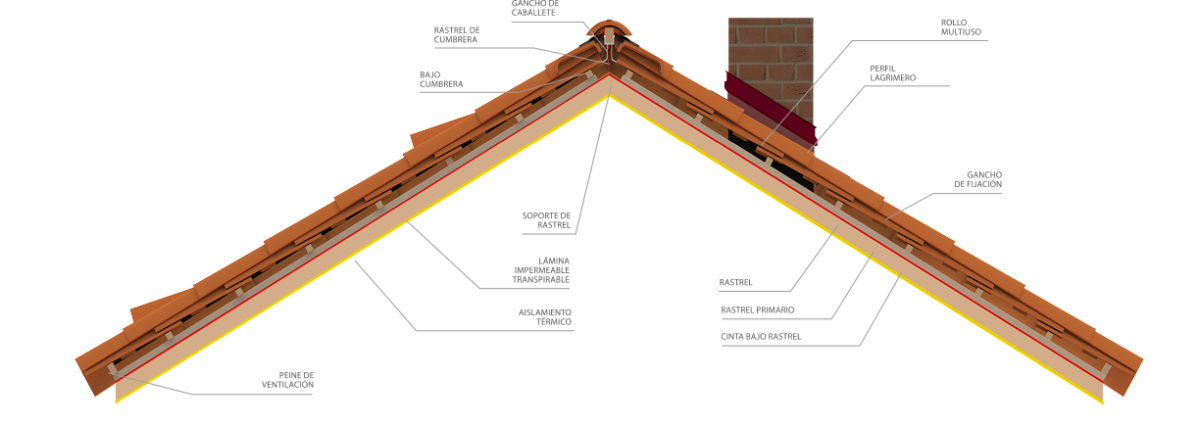

Components of the installation system
Waterproofing

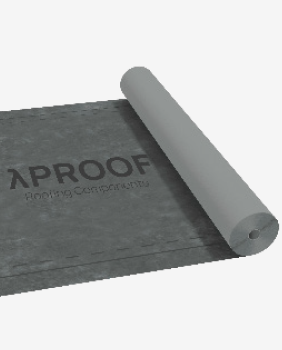

Premium breathable waterproof membrane
For maximum waterproofing.

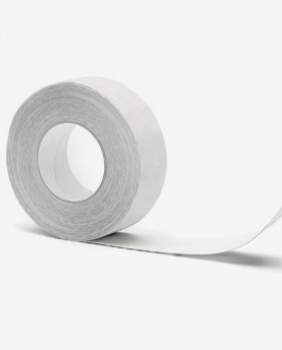

Single-sided adhesive tape
For sealing the membranes.

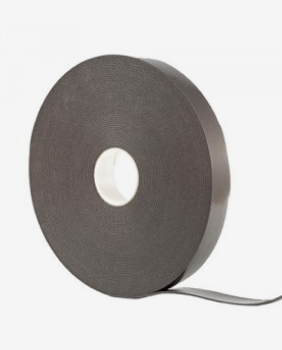

Anti-puncture under-batten tape
For sealing perforations in the membrane.

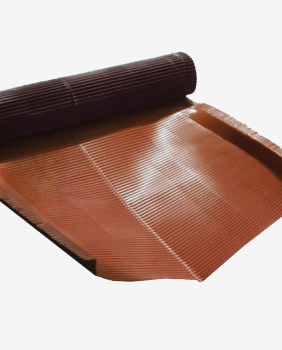

Aluminium valley roll
For waterproofing valley junctions.

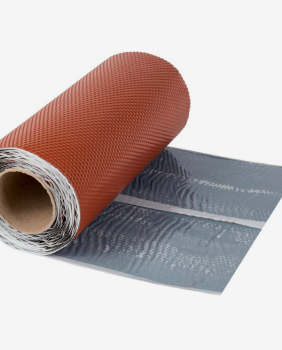

Multi-purpose aluminium flashing
For waterproofing junctions.

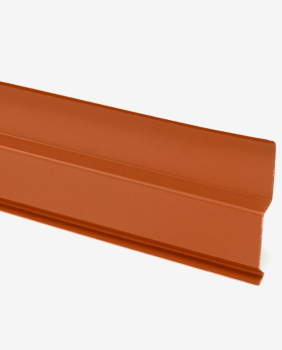

Drip edge profile
For fixing the multi-purpose flashing.

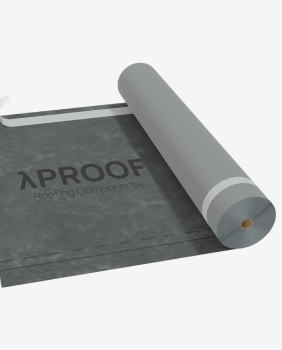

Premium breathable waterproof membrane with adhesive tape
Allows fast installation
Fixing

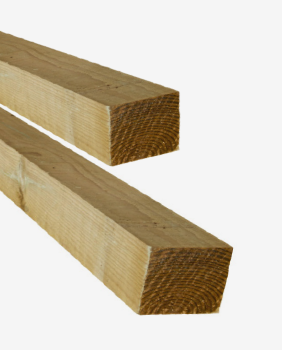

Treated timber batten 40×30 mm
Minimum 30 mm high, for battening.

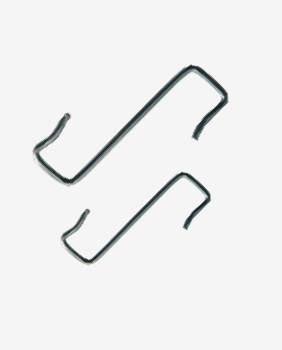

Curved tile hook
For tiles.

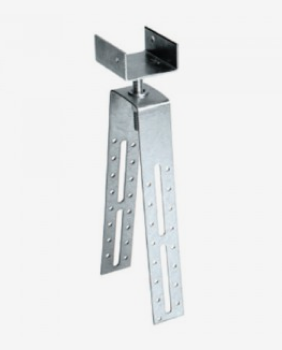

Adjustable batten support 50 mm
For fixing and levelling the batten.

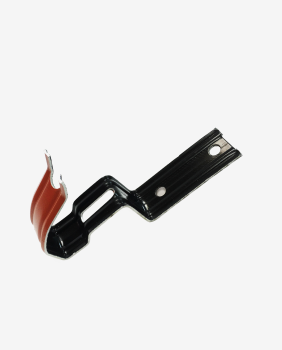

Ridge hook
For fixing ridge tiles

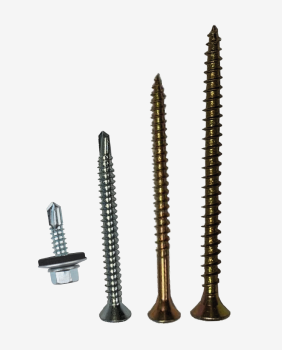

Fixing screws
Stainless steel. Various sizes.

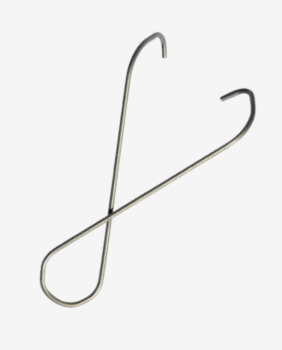

Eaves hooks
For dry fixing at the eaves
Ventilation

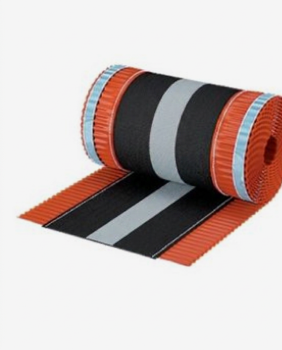

Mixed under-ridge roll
For ridge ventilation.

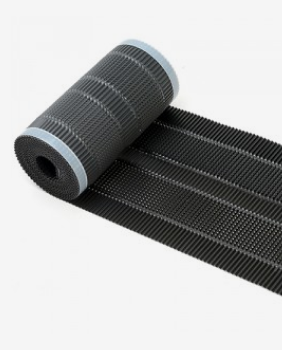

Aluminium under-ridge roll
For ridge ventilation.

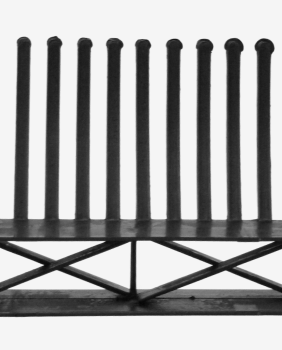

Batten + eaves comb (batten 30 mm; comb 60 mm)
To keep birds out.

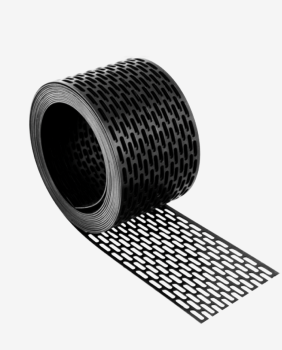

PVC eaves grille 80 mm
To allow air circulation.

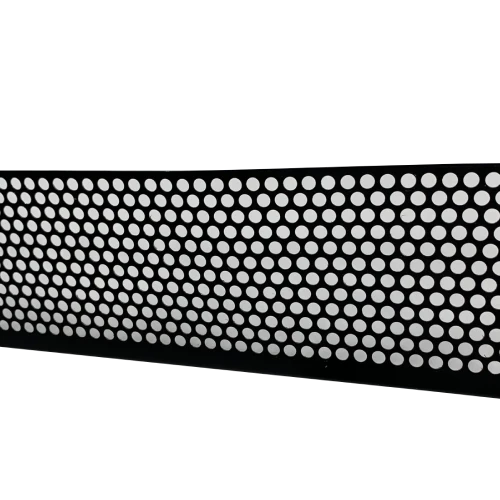

Aluminium eaves sheet
To keep birds and rodents out

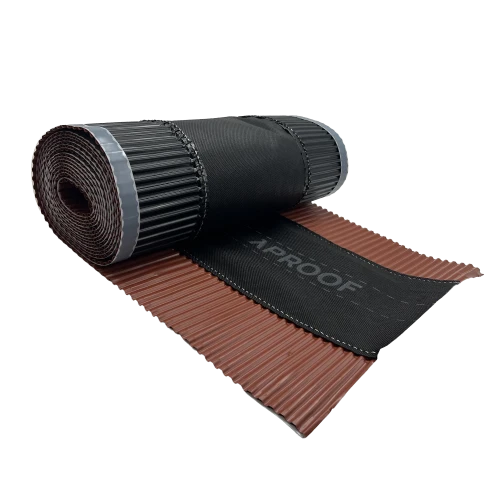

Waterproof fabric under-ridge roll 390 mm
For excellent ventilation of ridges and hips
