SOLAR FLAT-5XL
The largest solar panel surface on the largest ceramic tile on the market.
It doesn’t sit on top. It’s integrated

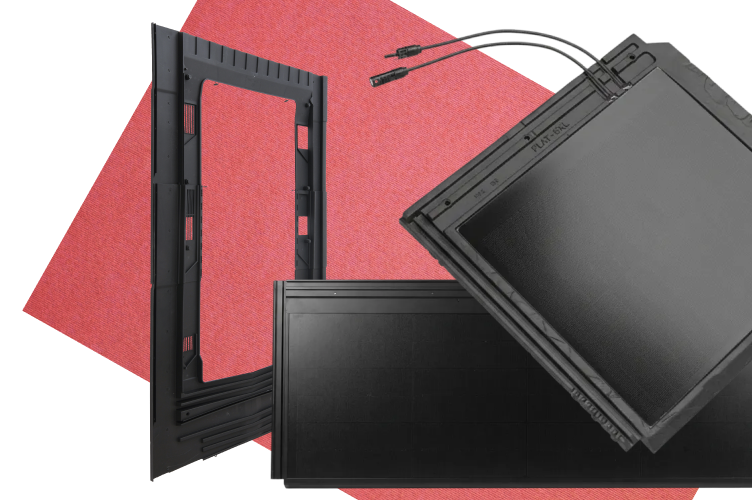

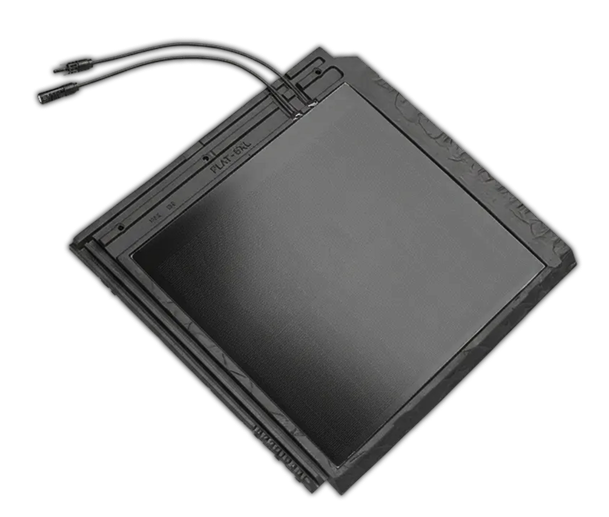

The SOLAR FLAT-5XL keeps the same ceramic base, format and performance as the standard FLAT-5XL tile. The photovoltaic panel is part of the piece, not installed on top of it.

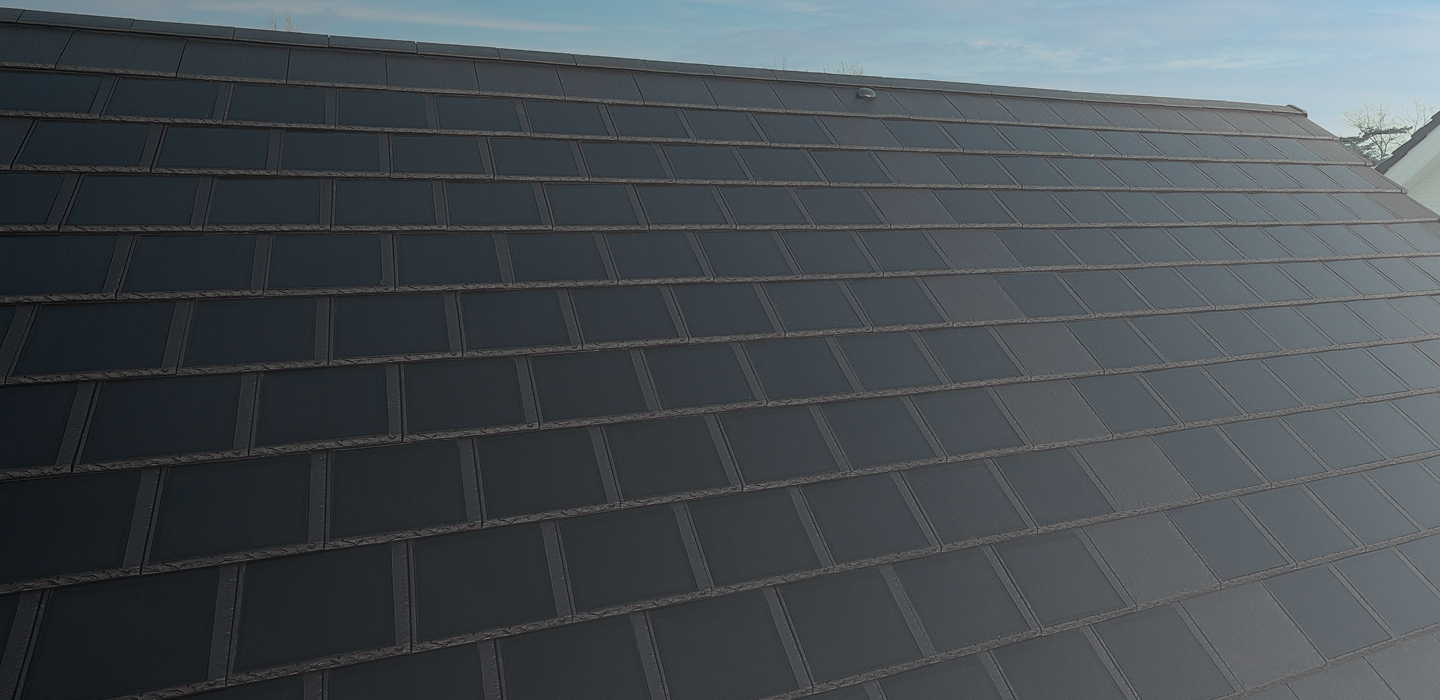

Uniform anti-reflective black finish with no visible connections. Solar energy blends in with no visual impact.
Warranty
All photovoltaic panels in the products of the Tejas Borja SOLAR range guarantee energy generation for more than 25 years with a 10-year warranty on the integrity of the photovoltaic cells.
23 W
per unit
143.26 W/m²
maximum output
41.32 units
for 1 kW
22,7%
energy efficiency
Technical specifications
| Dimensions | 457 x 510 mm |
| Weight | 7.50 kg |
| Laying | As per FLAT-5XL tile |
| Batten gauge | 370 mm |
| Maximum output | 23 W |
| Output/m2 maximum | 143.26 W/m2 |
| Units/m2 | 6.23 units/m2 |
| Units/pallet | 36 solar tiles |
Approximate values: Tile dimensions are subject to a ±2% tolerance in accordance with UNE-EN 1024.
Before installation, determine the effective length on site. Installation must comply with standard UNE-136020 on the design and installation of ceramic tile roofs and with Tejas Borja specifications. SOLAR FLAT-5XL ceramic tiles must always be installed on ventilated roofs, using a double batten system or equivalent.

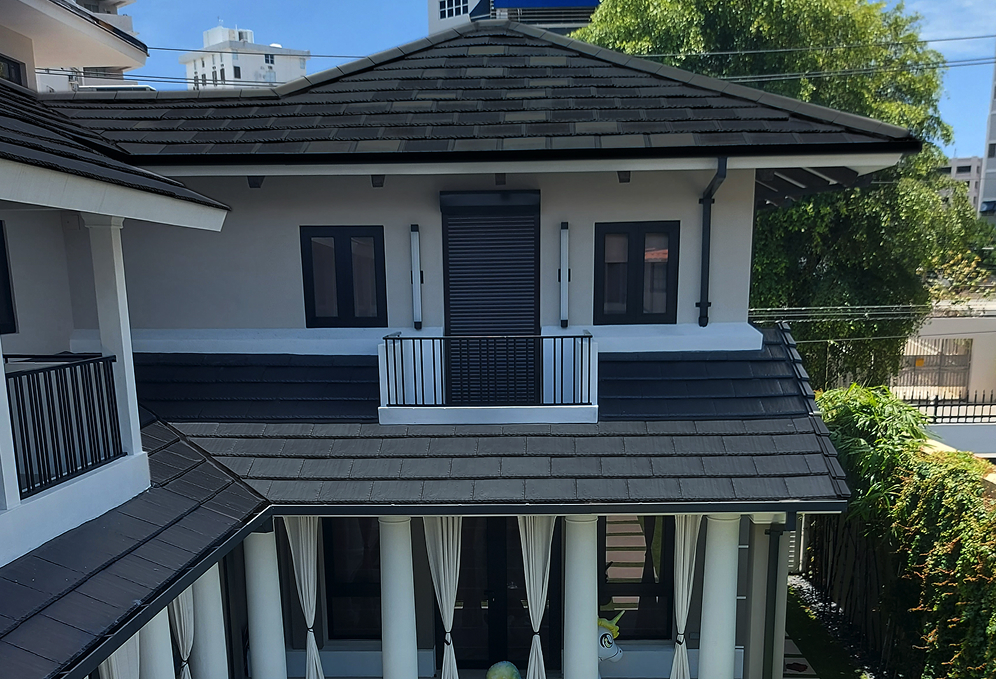

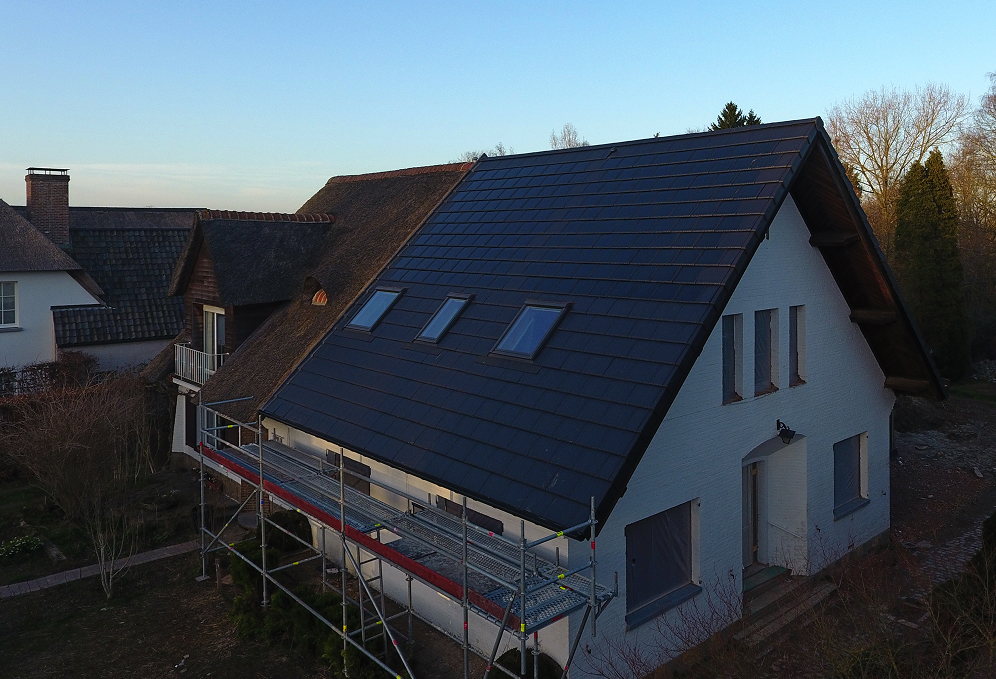

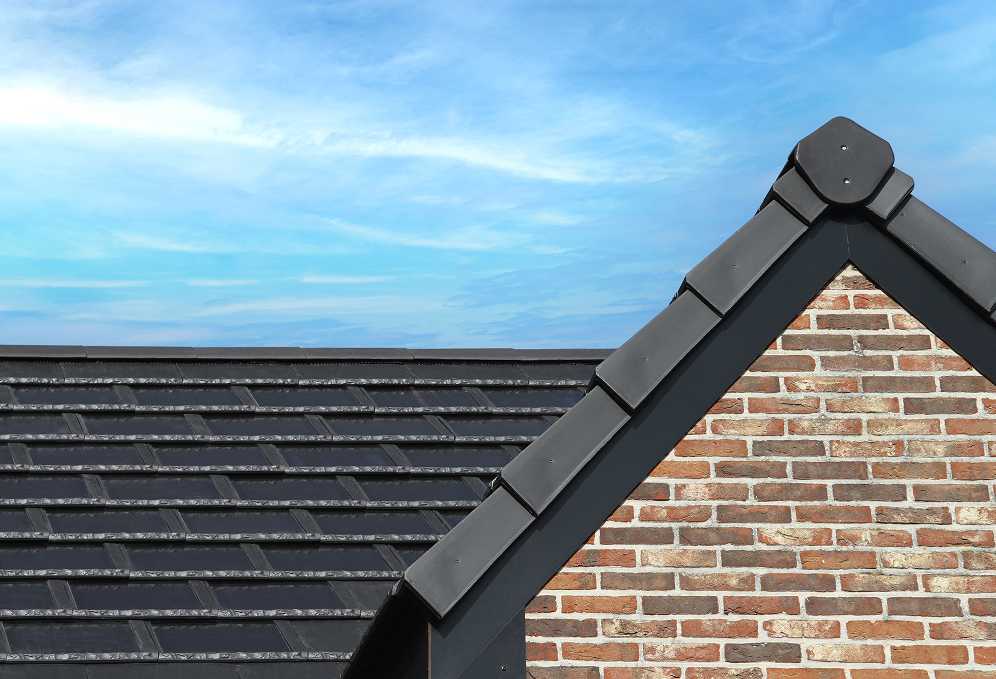

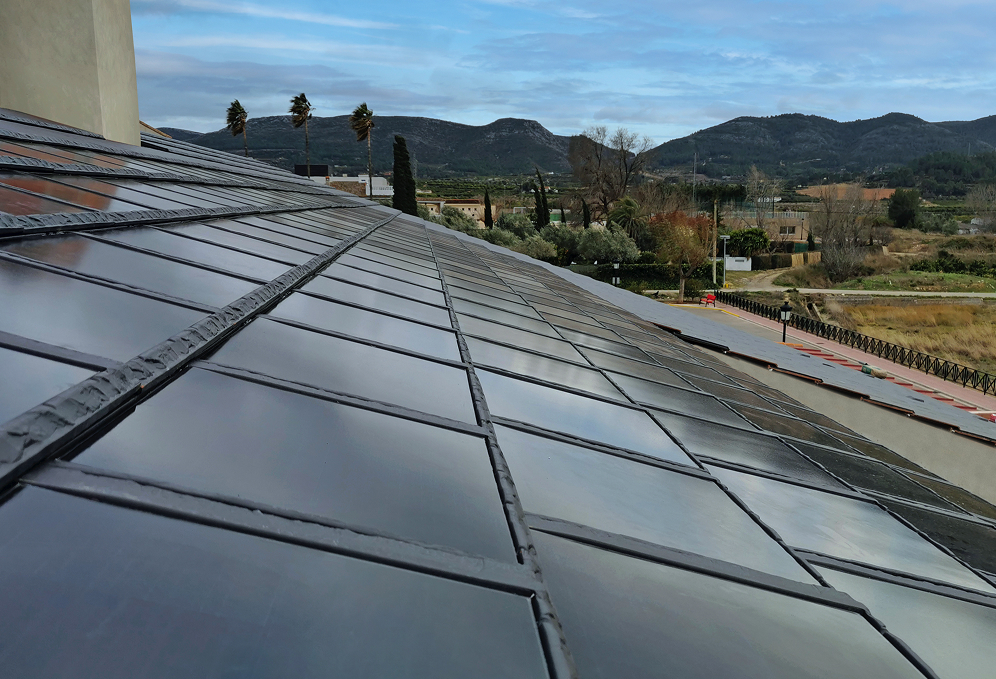

Projects with SOLAR FLAT-5XL
